IRIS®

The superior standard for rotation-in-space wheelchair technology

The superior standard for rotation-in-space wheelchair technology

The ultimate tilt-in-space wheelchair, the Quickie IRIS® Manual Tilt Wheelchair features up to 55° of Intelligent Rotation in Space Technology, the broadest range of positioning and caregiver options, numerous adjustments, and it's one of the lightest tilt-in-space wheelchairs available today.

Find Your Local Dealer

From $2775

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

Available colors:

The color options shown are for reference only. They are not intended as accurate representations. Refer to the Quickie Color Brochure or a Quickie Color Ring for representations of Quickie colors.

Options and Prices

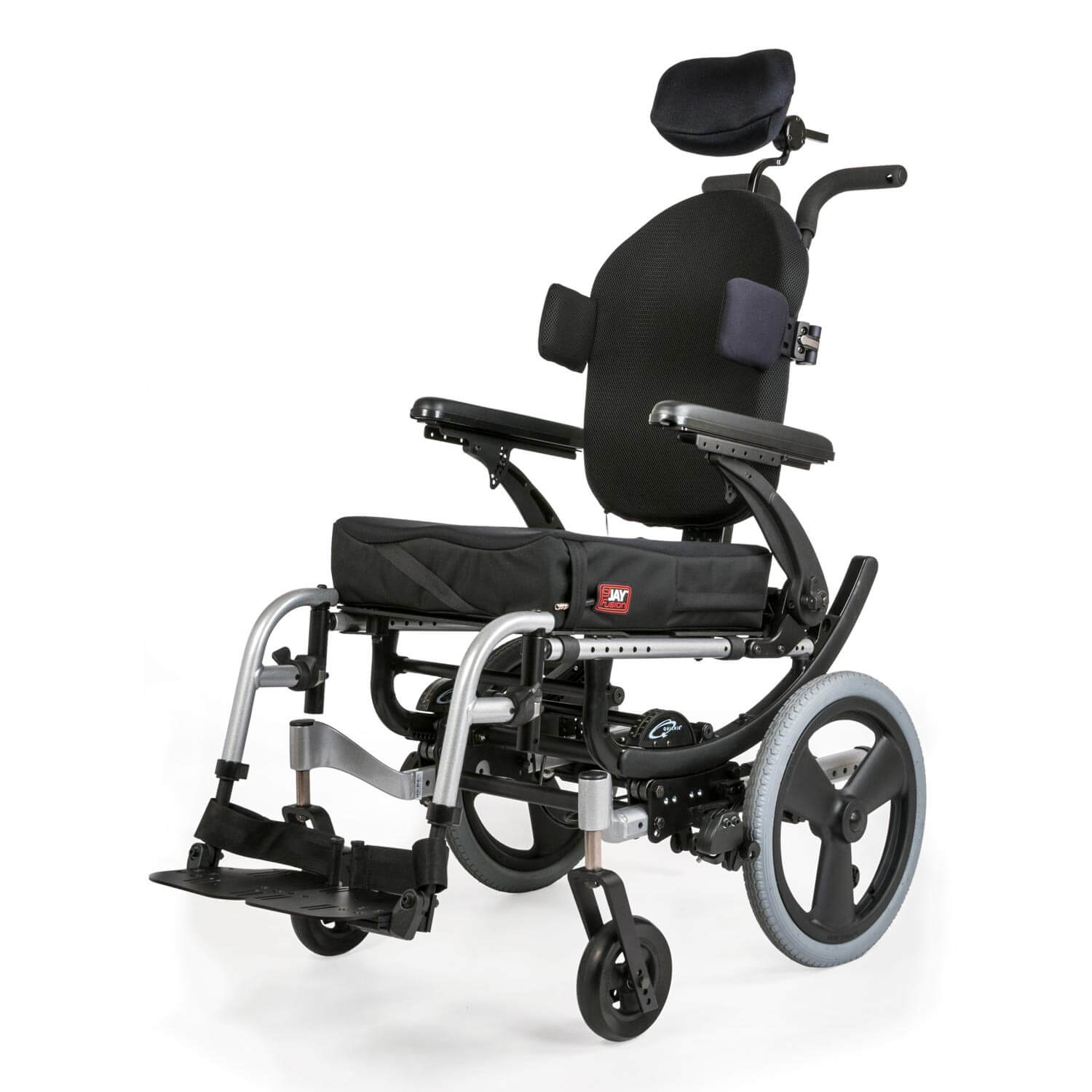

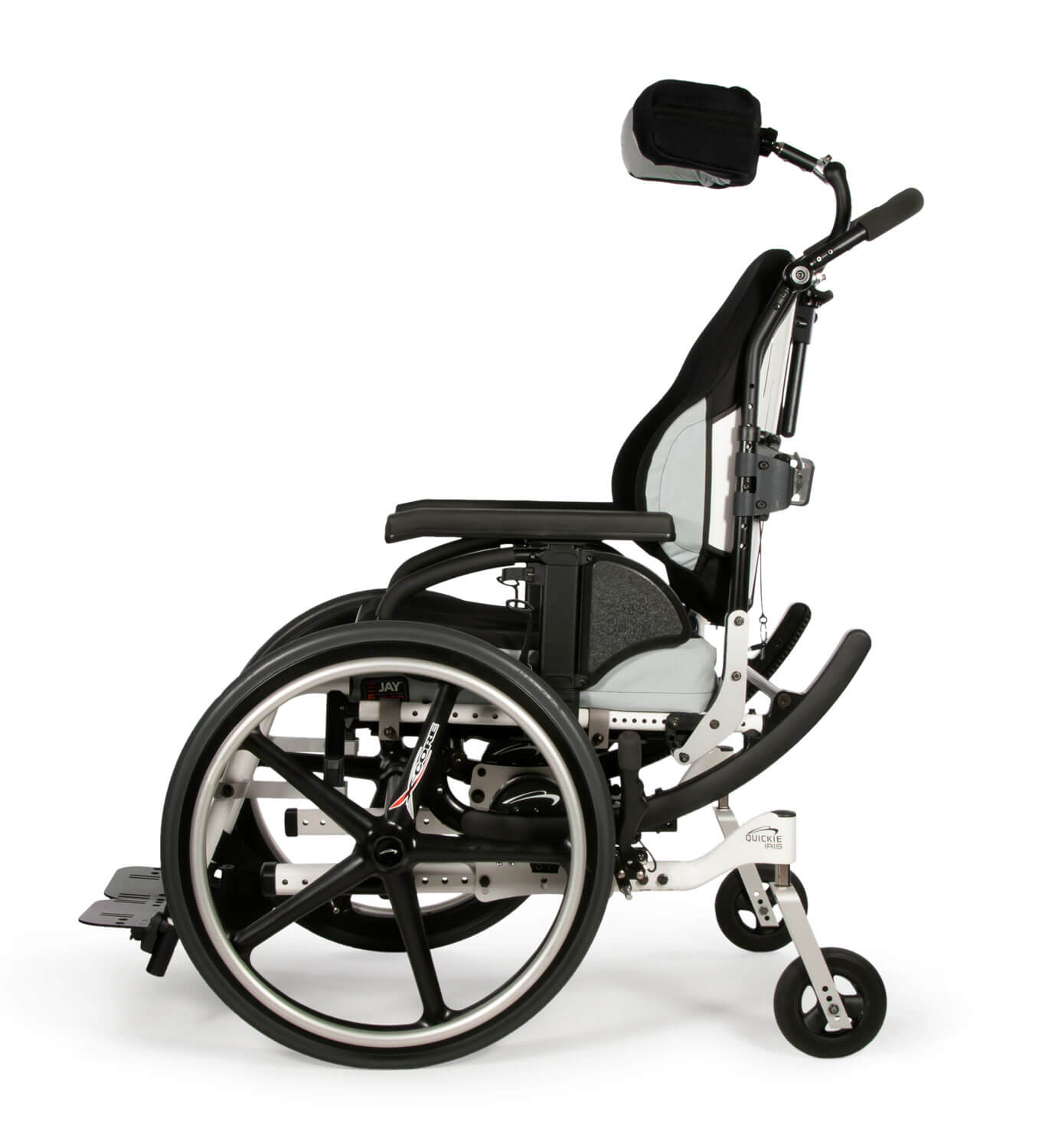

QUICKIE® IRIS Manual Tilt Wheelchair

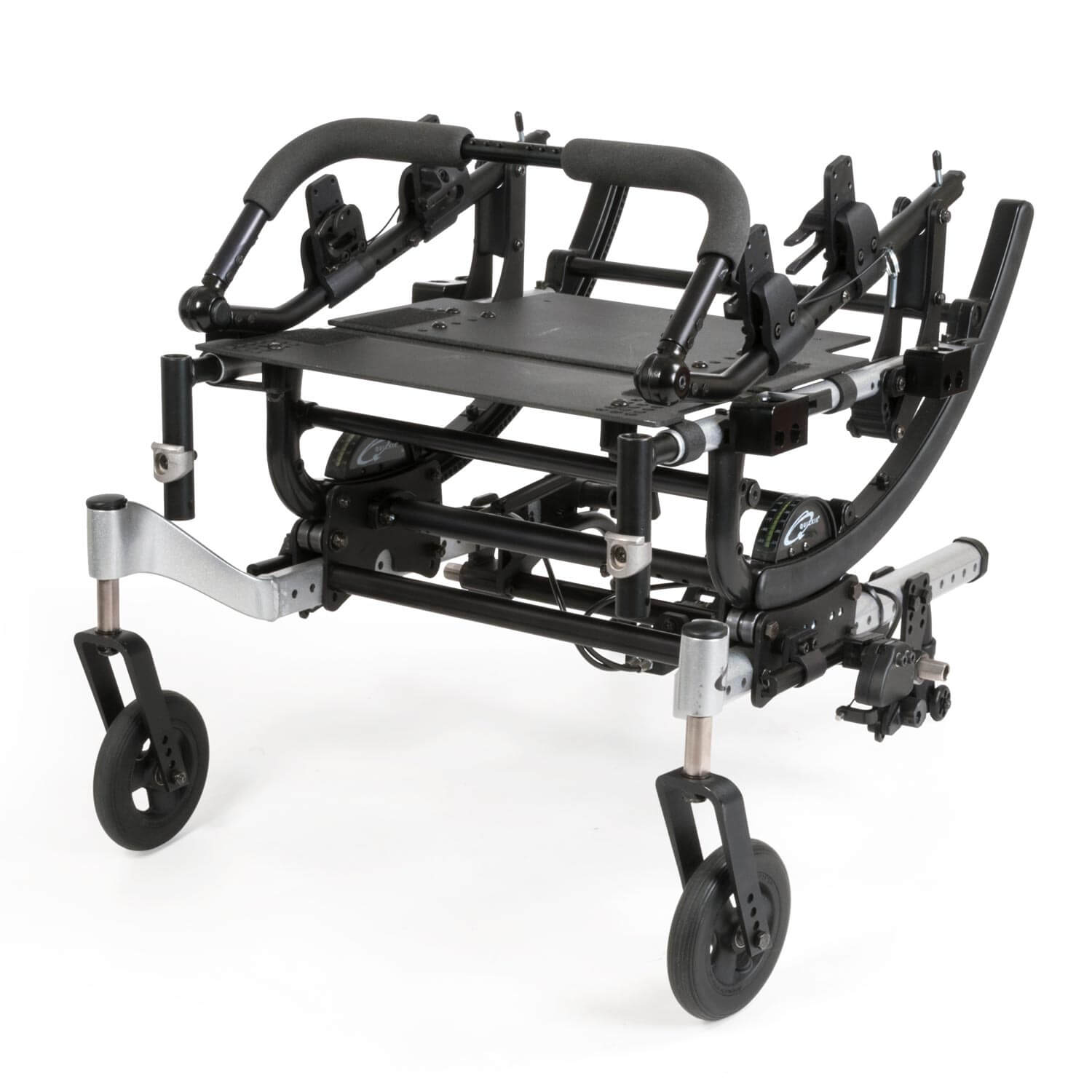

40° or 55° of Intelligent Rotation in Space Technology

40° or 55° of Intelligent Rotation in Space Technology

Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.

The Quickie IRIS now features a new Standard weight capacity of 300 lbs and Heavy Duty weight capacity of 400 lbs.

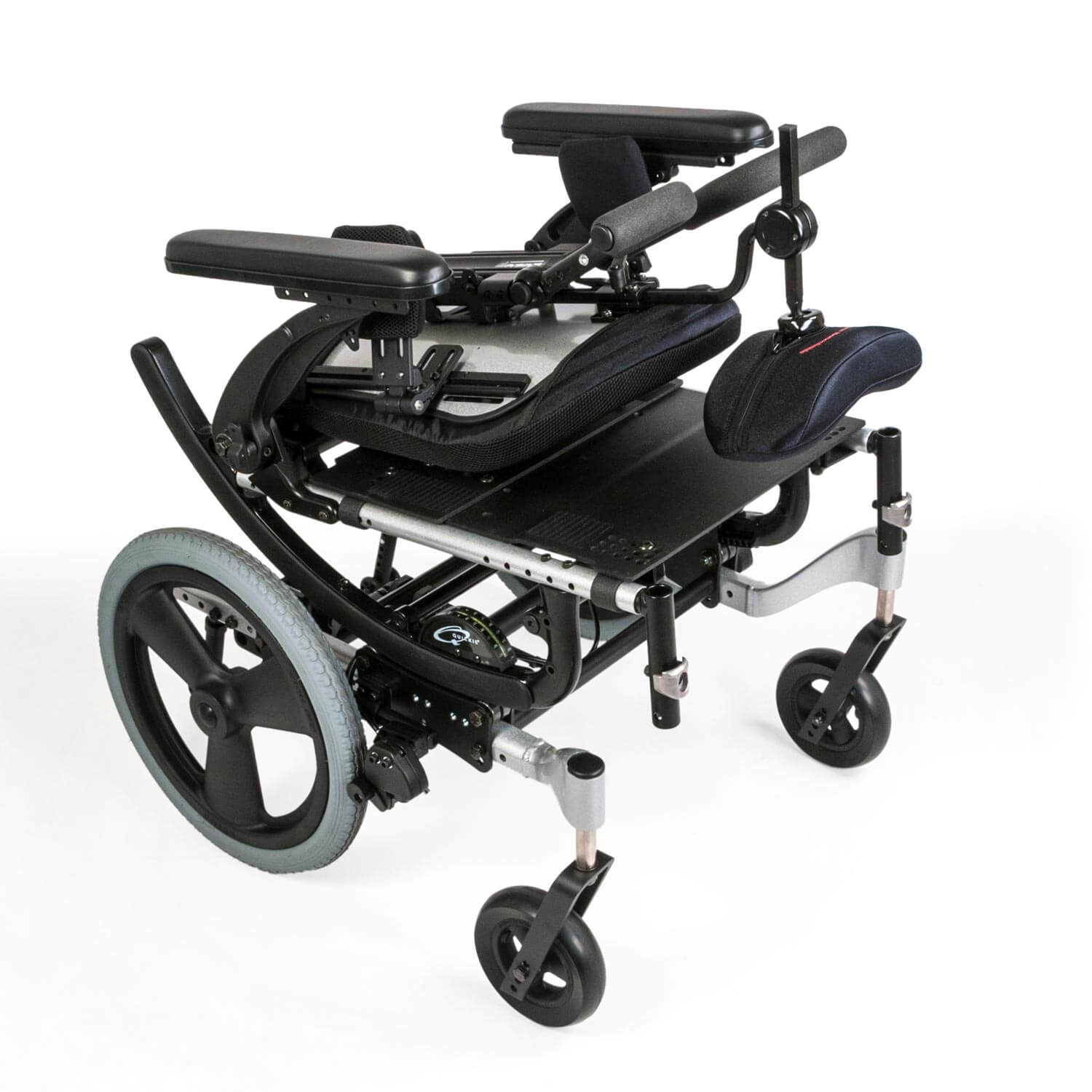

JAY Lower Extremity Support

JAY Lower Extremity Support

The new JAY Lower Extremity Support option is fully integrated into the Quickie IRIS hanger mount. The swing in/out latch mechanism design makes changing hangers from the lower extremity support a very intuitive process.

Available in two pad sizes, the technology allows for vertical and horizontal angle adjustment to achieve the proper support for our clients' needs.

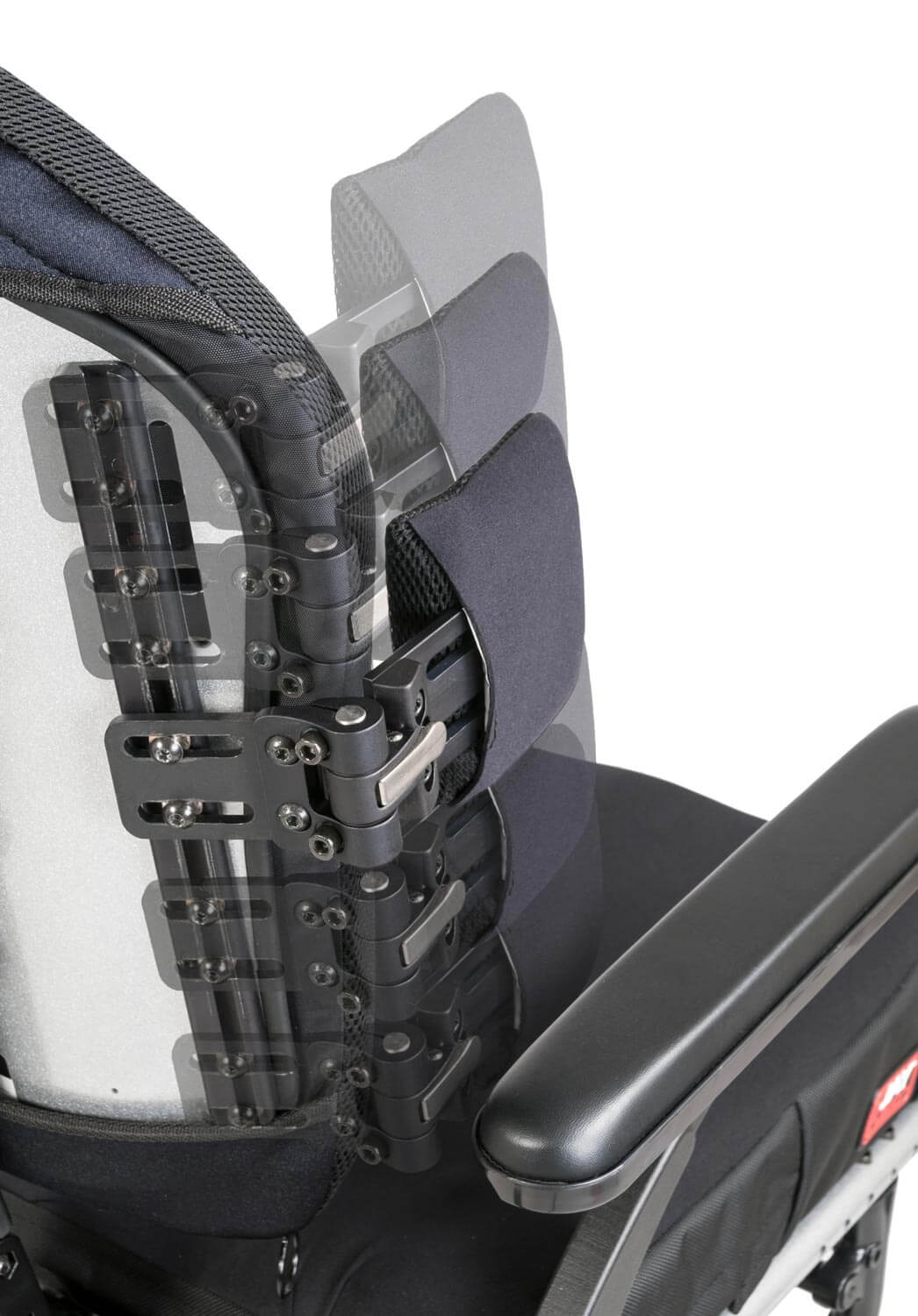

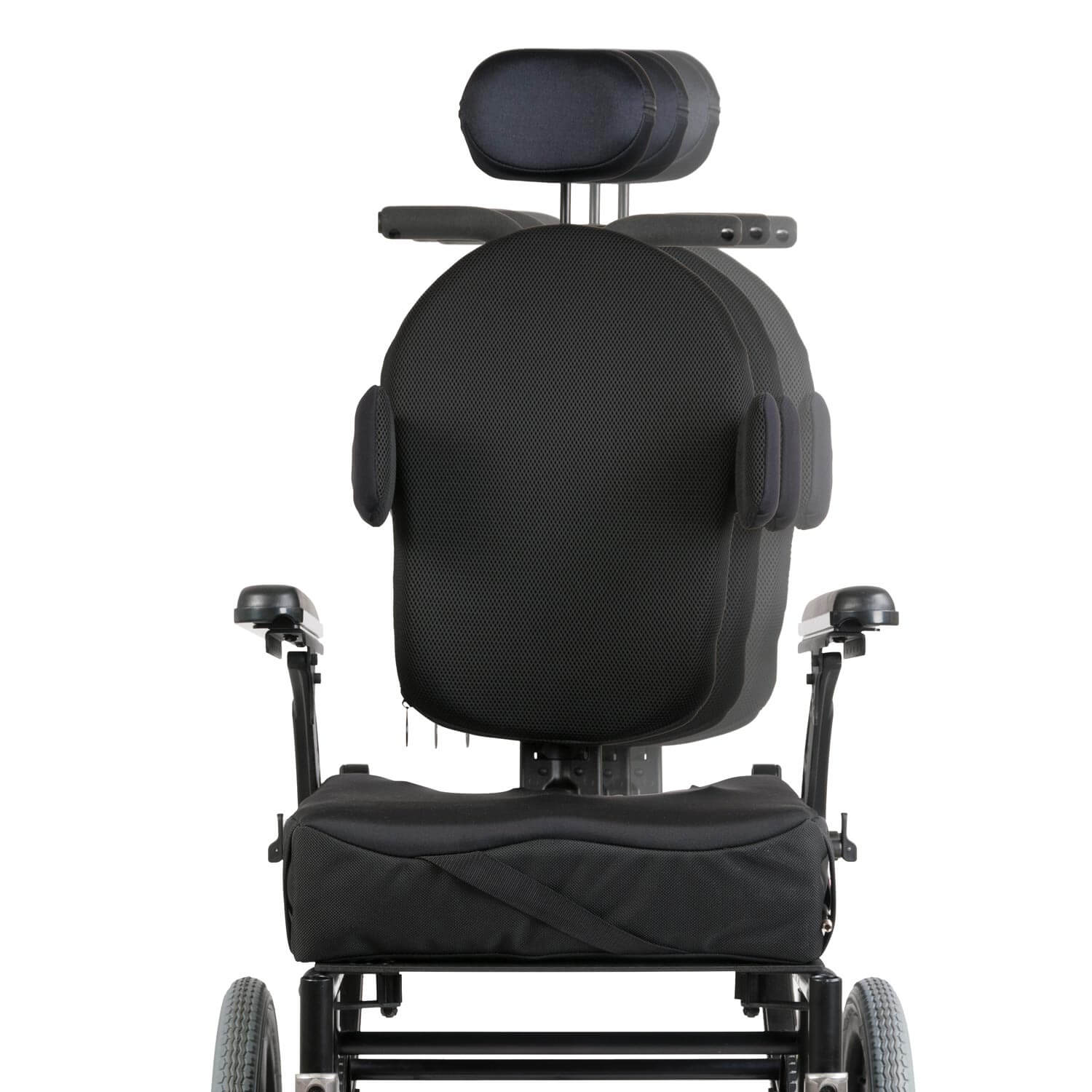

MONO Backrest System<sup>®</sup> Option

MONO Backrest System® Option

The MONO Backrest System's single-post offers limitless seating and positioning capabilities. By mounting the backrest to a single central post, the backrest and chair widths may be selected independently, hardware interference is eliminated to allow for infinite adjustment of lateral thoracic supports, and the backrest can achieve 2” of midline backrest offset.

The MONO Backrest System offers an optional dynamic function, 35° angle adjustment, and folds forward for easy transport.

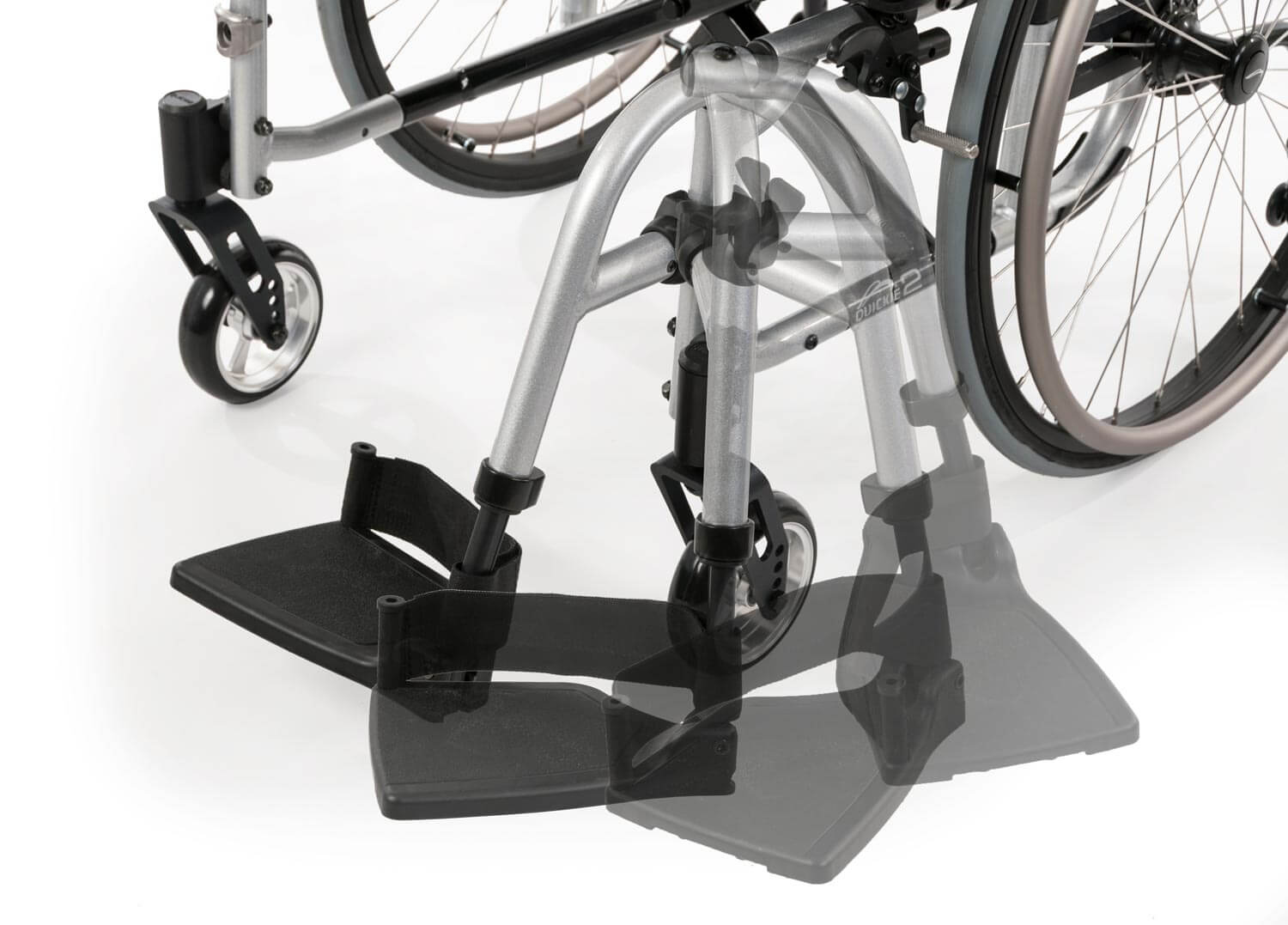

Intuitive Hanger Designs

Intuitive Hanger Designs

The IRIS's new swing-in/swing-out hanger design features an intuitive bi-directional release lever that follows your hand's movement. A tapered locking mechanism prevents the hanger from loosening over time.

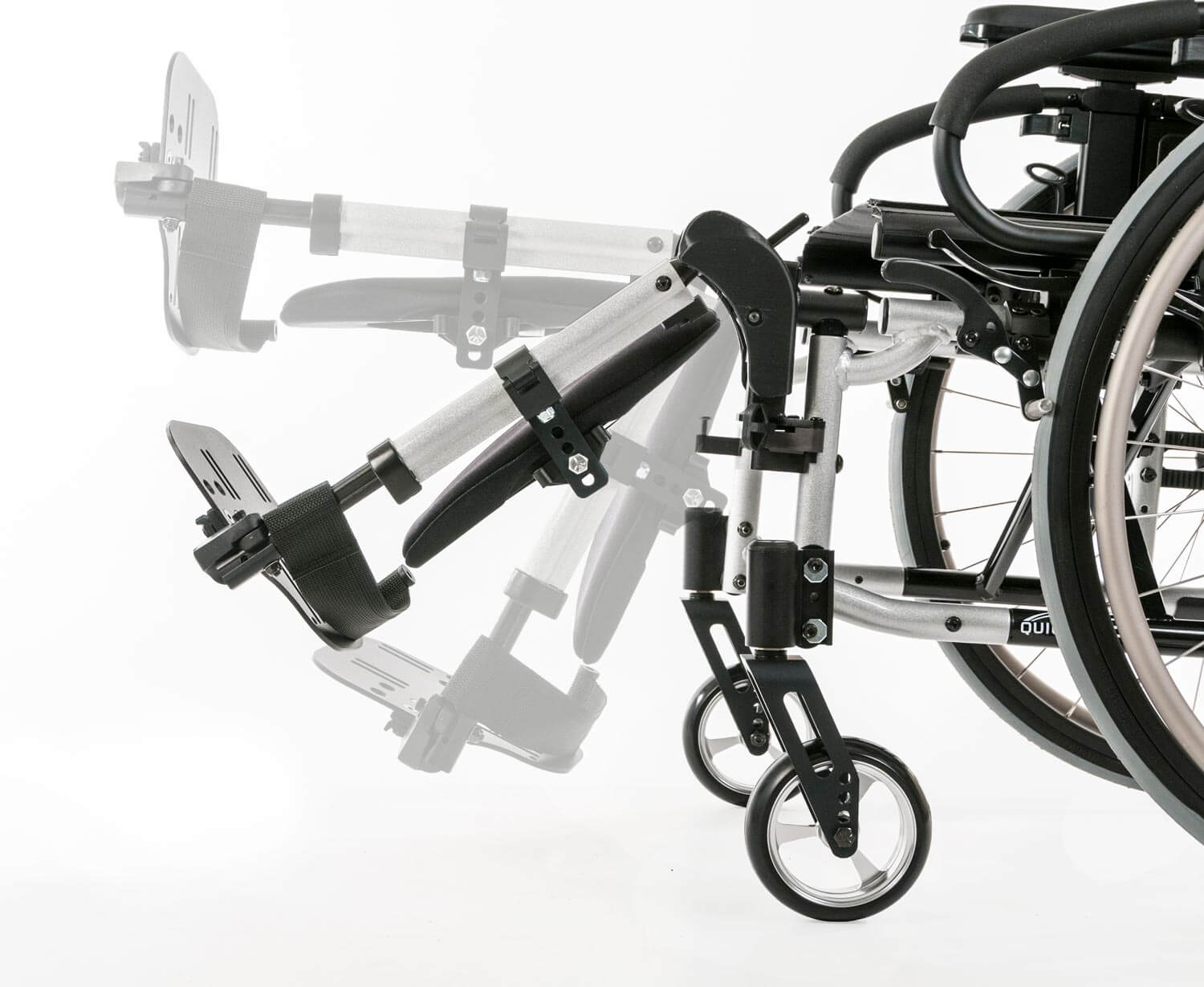

The Elevating/Articulating Legrest includes 2" of height adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated. The improved latch mechanism allows swapping between swing-in/swing-out hangers and ELR/ALR without additional hardware.

Dimensions
Seat Width:14" to 22"
Seat Depth:14" to 22"
Front Seat-to-Floor Height:12.5" to 19"
Rear Seat-to-Floor Height:12.5" to 19"
Tilt Range:
  • 40°
  • 55°
Back Height:
  • 15" to 21"
  • 18" to 24"
Back Angle Adjustment: -30° to 5°
Camber:
Shipping Dimensions:
  • Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H
  • Palletized: 47" L x 40" W x 54" H
Product Information
Model Number:EIZ4-2
HCPCS Code:E1161
Starting Retail Price:
  • IRIS: $2,975
  • IRIS SE: $2,775
Performance/Weights
Frame Type:Frame Options
  • Standard
  • Heavy Duty
  • Vent/Battery Base Tray
  • Contrature Seat Frame

Frame Struts:
  • Fixed
  • Width Adjustable
Frame Material:Aluminum
Transit:Yes
User Weight Capacity:
  • Standard: 300 lbs.
  • Heavy Duty: 400 lbs.
Product Weight:39 lbs.
Average Shipping Weight:
  • Boxed: 90 lbs. and 15 lbs.
  • Palletized: 150 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Frequently Asked Questions

Caster fork length makes a difference to the turning circle - if the fork is longer then the wheelchair is harder to maneuver.

Yes. You can find the item listed on Sunparts.

No, not on lightweight Proton or Spinergy wheels.

Yes, on everything but the lightweight Proton or Spinergy wheels.

Yes, on the lightweight wheel the Surge hand rim is mounted only with a screw, and on the Spinergy wheels the hand rim is mounted with a screw and fixed with an extra nut. The extra nut is included in the kit.
